Styrorail’s SR.P products are versatile expanded polystyrene insulation panels used to insulate all surfaces from the foundation to the roof. Insulate the interior or exterior surface of foundation walls, the interior or exterior of framed walls as well as underneath the basement and garage concrete slabs.

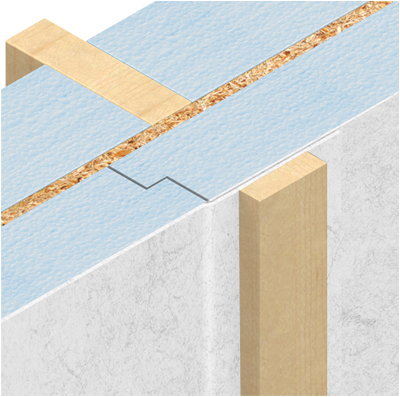

Versatile Insulation Panel – Expanded polystyrene insulation panel with integrated furring strips at 406 mm [16″] c/c to continuously insulate several surfaces. Ideal where space is limited.
SR.I 200 1.5″ x 48″ x 96″ Flush
Expanded polystyrene insulation panel with integrated furring strips at 406mm [16″] c/c to continuously insulate several surfaces. Ideal where space is limited.
Direct fixation of horizontal furring strips, vapor barrier and interior finish.

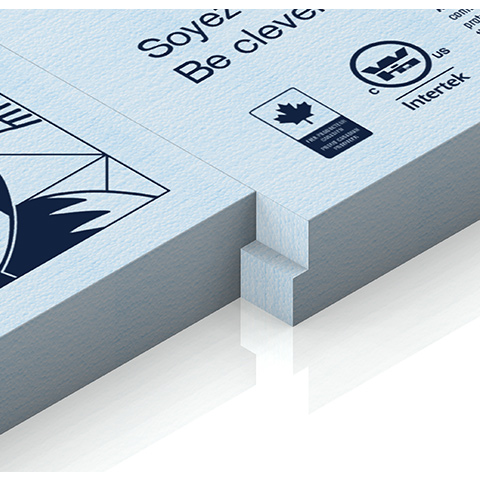

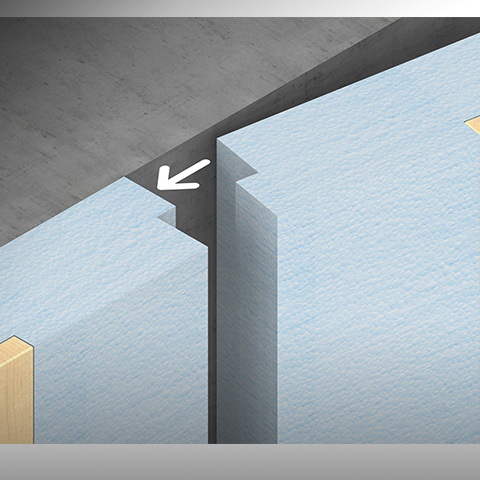

Perfect overlap between panels through shiplap joints on two sides.
SR.I 200 2.5″ x 48″ x 96″ Flush
Expanded polystyrene insulation panel with integrated furring strips at 406mm [16″] c/c to continuously insulate several surfaces. Ideal where space is limited.
Direct fixation of horizontal furring strips, vapor barrier and interior finish.
Perfect overlap between panels through shiplap joints on two sides.

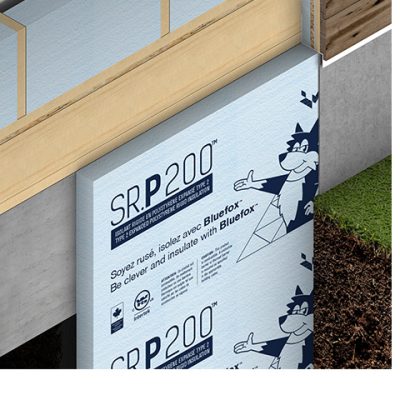

SR.P 200 R10 4′ x 8′
SR.P200 Type II Rigid Insulation. 16 PSI @ 10% Deflection 2.5″ x 48″ x 96″ R10
The SR.P200™ panels manufactured by Styro Rail Inc. are composed of type 2 expanded polystyrene [EPS] rigid insulation.

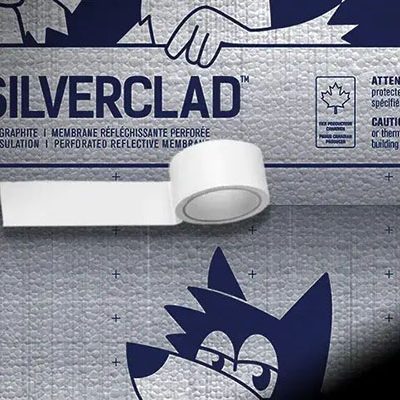

SilverClad R5
Non vapour barrier insulating panel for framed walls.
Type 1 Expanded polystyrene insulation panel equipped with a microperforated reflective metallized film on both sides to insulate the outer surface of framed walls.
Allows moisture contained in the wall to escape. Eliminates thermal bridges. Second plane of protection against adverse weather conditions.
SR.I 200 1.5″ x 48″ x 96″ Crowned
with Integrated Furring Strips Type II EPS 16 PSI R6
The SR.I™ panels manufactured by Styro Rail Inc. are composed of type 1 [100 series] or type 2 [200 series] expanded polystyrene [EPS] rigid insulation in which 25 mm x 76 mm [1” x 3”] furring strips are embedded at every 406 mm [16”] o.c. or at every 610 mm [24”] o.c.

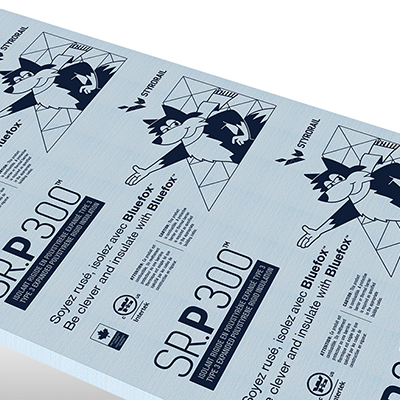

SR.P 300 – Type 3 Insulating Panel
The SR.P300™ panels manufactured by Styro Rail Inc. are composed of type 3 expanded polystyrene [EPS] rigid insulation and offers a compressive strength of 140 kPa [20 PSI].
Insulating value of RSI 0.74/25 mm
Meets current building code requirements
Closed cell- moisture resistant
Non vapour barrier
Permanent r-value
ACCESSORIES:
Acoustic Sealant for Polyethylene Vapour Barriers (850 ml tubes)
Blue Sheathing Tape for PE Vapour Barrier
Polyethylene Vapour Barriers (6 mil – 8’, 9’ or 10’ x 1500 sq. ft. rolls)
